When you package delicate vials for pharmaceuticals, the stakes are high. One damaged vial can trigger a cascade of quality investigations, shipment delays, and costly returns. That’s why selecting the right pharmaceutical vial packaging grids is your first line of defense against breakage. In this guide, you’ll discover how fiberboard partitions combine precise design, material efficiency, and sustainability to protect each vial in your shipment without inflating package volume.
Whether you’re a packaging engineer refining line throughput or a quality manager tracking breakage rate KPIs, you’ll learn how to assess handling stresses, design robust partitions, and customize grids to your exact needs. Real-world examples and expert insights will show you how to cut returns and shipping costs at the same time. Let’s get started.

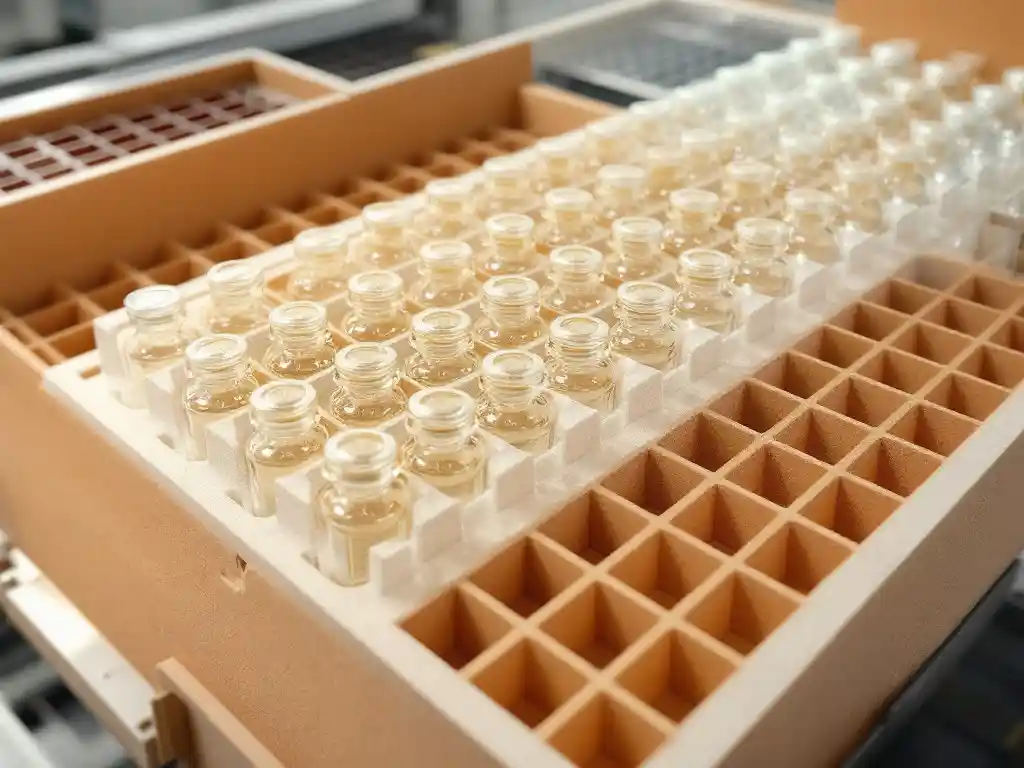

Packaging grids, sometimes called partitions or dividers, are internal structures that isolate individual vials within a shipping carton. By creating dedicated cells for each vial, they prevent contact, shifting, and collisions that lead to cracks or breakage under vibration and impact. Fiberboard partitions have become the go-to solution for pharmaceutical vial packaging grids because they offer consistency, easy assembly, and sustainable credentials.
Each cell in a fiberboard grid holds a single vial snugly, immobilizing it even when the outer box experiences drops or lateral impacts. The walls between cells absorb minor shocks and distribute forces evenly across the pack. Because the grid locks itself into the carton through flaps or tabs, the structure remains rigid under stacking loads. This cell-by-cell protection means vials no longer rattle or lean against each other during transit.
Effective partitions rely on three core design elements: precision cutting, accurate scoring, and reliable self-locking. Precision die-cutting ensures that every cell matches your vial dimensions within tight tolerances. Scoring lines guide quick folding and maintain consistent wall angles. Self-locking tabs or slots snap into place without adhesives, speeding up assembly on automated or manual lines while preserving cell stability throughout handling and storage.
Before you specify any grid solution, it’s vital to understand how and where vials break. Packaging engineers and quality managers often focus on two main areas: handling stresses and space constraints. Addressing both will help you choose an optimized grid without unnecessary material or volume.
Pharmaceutical shipments endure multiple stressors, from forklift drops onto pallets to continuous vibration during truck or air transport. Inadequate internal support lets vials collide along carton edges or topple, concentrating force on thin glass walls. Even a single high-g-impact can result in micro-fissures that compromise vial integrity later on, so your partition must isolate each unit throughout the logistics chain.
Your KPI likely tracks both breakage rate and shipping efficiency. Bulky inserts may protect vials but increase cubic volume and freight costs. Conversely, too little support heightens damage risk. The goal is a balance—enough partition thickness to cushion impacts, minimal dead space so you ship more vials per pallet, and precise cell layouts that match carton dimensions.
With breakage scenarios mapped out, you can focus on the core fiberboard design techniques that deliver consistent performance. Precise execution at this stage pays dividends in assembly speed and protective reliability.
Advanced die-cutting tools enable dimensional accuracy often within a half-millimeter, making sure each cell accommodates your vial’s outer diameter plus a small clearance. Scoring lines at fold points allow crisp, repeatable creases that form perfect cell walls. Consistent wall heights ensure the partition fits securely inside your selected carton, preventing unwanted vertical movement.
Many fiberboard partitions feature locking tabs engineered to interlock as you fold the divider into shape. This eliminates the need for tapes or adhesives that slow down packing lines. Self-locking designs also maintain rigidity under weight when cartons are stacked in storage or on pallets, so you don’t need extra reinforcement layers.
(Source: Premier Packaging Products)
Every vial type, from 2 mL glass vials to larger ceramic cartridges or auto-parts inserts, demands a bespoke grid layout. Two factors dominate customization: cell size and wall thickness.
You’ll base each cell’s internal diameter on the widest point of your vial plus a small tolerance—often 1–2 mm—to accommodate minor variations without letting the vial shift. The total number of cells per grid equals your standard carton capacity. Whether you need a 6×4 grid for a 24-pack configuration or a compact 3×3 for nine vials, precise tooling guarantees each layout fits your box dimensions exactly.
Thinner walls maximize packing density but absorb less energy on impact. Thicker walls improve shock resistance at the expense of carton volume. A common range lies between 1.5 mm and 3 mm of fiberboard thickness. You’ll choose based on your handling profile, drop test requirements, and freight cost targets. For tailored designs, visit our page on custom fiberboard partitions manufacturer usa to see how we match cell count, thickness, and material grade to your unique needs.
Partition design is as much about efficiency as it is about protection. By refining grid geometry and material choice, you can boost pallet utilization and reduce per-unit shipping costs.
A well-engineered grid places just enough material between vials to prevent contact while minimizing empty space. Advanced layouts nest rows of cells to maximize carton fill rate. This means you ship more vials per box, reducing the number of cartons you handle. Better density also yields fewer pallets, cutting down on warehouse space and freight charges.
Lightweight fiberboard partitions lower gross weight compared to plastic or foam inserts. Combined with optimized carton dimensions, you can often negotiate better shipping rates. In addition, reduced breakage means fewer expedited replacements and less rework, further improving your total landed cost per vial.
(Source: Premier Packaging Products)
Many manufacturers now include environmental targets alongside quality metrics. Fiberboard partitions support green initiatives without compromising performance.
Fiberboard is made from paper-based fibers that are fully recyclable in standard paper streams. After unpacking, the grid can be flattened and sent for pulping, closing the loop on material use. Some facilities even incorporate recycled content in new partitions, further reducing resource consumption.
Thanks to thinner wall options and close-fit designs, fiberboard partitions minimize material volume and cut carbon emissions associated with transport. Lower mass and optimized carton sizes mean fewer trucks on the road and smaller storage footprints, aligning with corporate sustainability programs and regulatory expectations.
Real-world applications highlight the tangible benefits of pharmaceutical vial packaging grids and help you benchmark expected outcomes.
A mid-size biotech company replacing loose-fill foam with custom fiberboard partitions saw a dramatic drop in breakage-related returns. Overnight, they reduced returned shipments by more than 40 percent, slashed foam disposal costs, and cut packing time in half thanks to the partitions’ self-locking design.
Monitoring breakage rate before and after implementation is key. By tracking returns and scrap levels, packaging engineers proved a clear ROI within three months. Their quality team also noted fewer contamination risks, since partitions do not shed particles like foam or loose fill, helping maintain sterile conditions.
Choosing the right pharmaceutical vial packaging grids means balancing protection, efficiency, and sustainability. Fiberboard partitions deliver on all three fronts through precise design, easy assembly, and recyclable materials. By understanding your handling stresses, customizing cell size and thickness, and optimizing grid layouts, you’ll slash breakage rates and shipping costs at the same time.
At Premier Packaging Products, we specialize in crafting bespoke fiberboard partitions that fit your vial dimensions and process requirements. Ready to improve your packaging performance and hit your quality KPIs? Contact our team today to discuss your project and see how our expertise can support your mission.
Frequently asked questions
Q: What are pharmaceutical vial packaging grids?
A: Pharmaceutical vial packaging grids are internal dividers made from fiberboard or similar materials that create individual cells for each vial. They prevent vials from colliding or shifting during transit, reducing breakage and returns. These grids snap into cartons and require no additional adhesives, speeding up packing lines.
Q: How do fiberboard partitions reduce breakage?
A: Fiberboard partitions isolate each vial in its own cell, absorbing shocks and distributing impact forces evenly. The walls between cells act as buffers against lateral and vertical movement. Because the partitions lock inside the carton, they maintain structural integrity under stacking loads, preventing direct contact between vials.
Q: Can partitions be customized to any vial size?
A: Yes, partitions can be tailored precisely to your vial’s outer diameter and height. You select the internal cell diameter, the total number of cells, and the partition height to match your carton dimensions. Custom tooling ensures consistent tolerances for smooth assembly and reliable protection.
Q: Are fiberboard partitions recyclable?
A: Absolutely. Fiberboard partitions are made from paper-based fibers that can be recycled with standard cardboard or paper waste. After unpacking, they flatten easily and enter the pulping process, supporting closed-loop recycling efforts and reducing environmental impact.
Q: How do I choose the right wall thickness?
A: Wall thickness balances shock absorption against packing density. Thicker walls improve protection in high-risk handling environments, while thinner walls maximize carton volume. Common thicknesses range from 1.5 mm to 3 mm. You’ll select a thickness based on drop-test requirements, vial fragility, and shipping cost targets.
